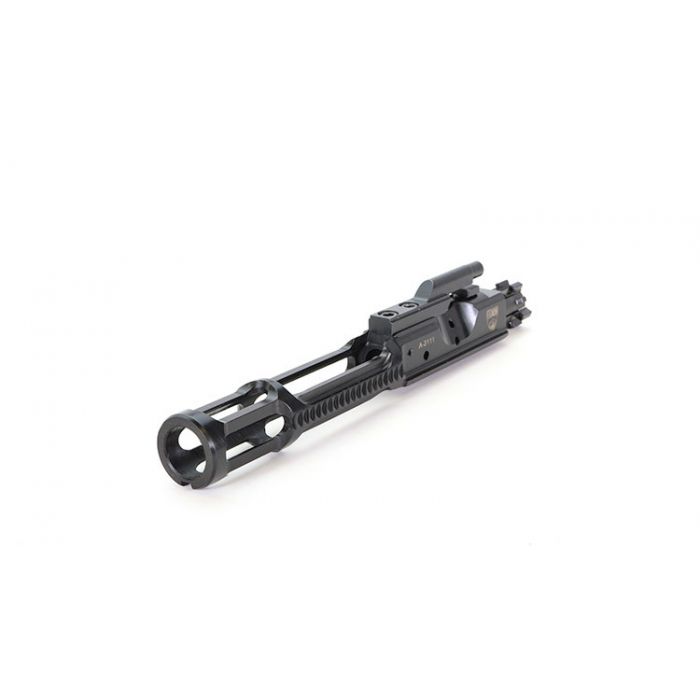

Faxon Firearms 5.56/300 BLK Gunner Light Weight Bolt Carrier Group - Nitride

5 Remaining
SKU
FF556BCGCNITRIDE-LW

When looking at lightweight bolt carrier groups, we were unsatisfied with what the market had to offer. Seeing a capability gap, we set out to create a bolt carrier group that could live up to the GUNNER name with no compromise in strength or function.

Faxon recommends the use of an adjustable gas block with our Gunner lightweight BCG for proper function.

Matching our barrels, we selected the QPQ method of Salt Bath Nitride for all the carriers components. By coating all parts, the carrier's natural slickness is increased markedly requiring less gas and pressure to operate. Further, the QPQ SBN process seals components against corrosion while making them fantastically wear resistant.

Improvements include using 9310 tool steel for the bolt, which is stronger and nitriding the assembly to increase surface hardness, decrease resistance, and have superior corrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions.

Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service.

As a testament of our confidence, the carriers are all laser-engraved with the Faxon Shield after passing all Quality inspections.

Faxon recommends the use of an adjustable gas block with our Gunner lightweight BCG for proper function.

Technical Specifications

Bolt:

  • 9310 Tool Steel Construction (Stronger than C158)
  • Full MIL-SPEC Heat Treatment
  • Shot Peened to MIL-SPEC
  • Magnetic Particle Inspection (MPI)
  • Back of Lugs Chamfered for Reliability
  • Spring, Insert, & "Crane" O-Ring Installed
  • QPQ - Salt Bath Nitrided

Extractor:

  • S7 Tool Steel Construction
  • Fully Heat Treated
  • Shot Peened Per MIL-SPEC
  • QPQ - Salt Bath Nitrided

Carrier & Key:

  • Superfinished Carrier
  • Carrier: MIL-SPEC 8620 Steel Material
  • Key: 4140 Steel Material
  • Fully Heat Treated
  • Forward Assist Serrations
  • M16 (FULL-AUTO) Compatible
  • Grade 8 Fasteners
  • Fully & Properly Staked Key, Permatex Sealed
  • QPQ - Salt Bath Nitrided
  • Weight w/ Key (Not Bolt or any Pins): 6.32 Ounces

Cam Pin:

  • 4140 Pre-Hardended Steel Material
  • QPQ - Salt Bath Nitrided
More Information
SKU FF556BCGCNITRIDE-LW
UPC 816341020894
MPN FF556BCGCNITRIDE-LW
Manufacturer Faxon Firearms
Model Gunner Light Weight
Weight 0.6000
Condition New
Material Steel
Fits AR-15
